On the frame ABM the harness belts coming from the shoulder and the backrest are fixed to the frame with the quick release buckles that can be easy disconnected to allow rotation of the arms ABM during transport.

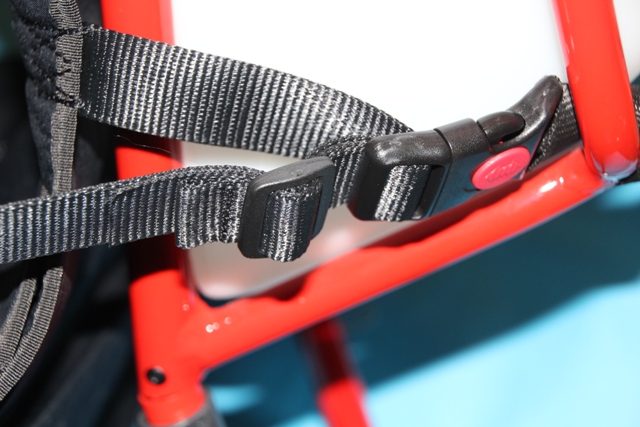

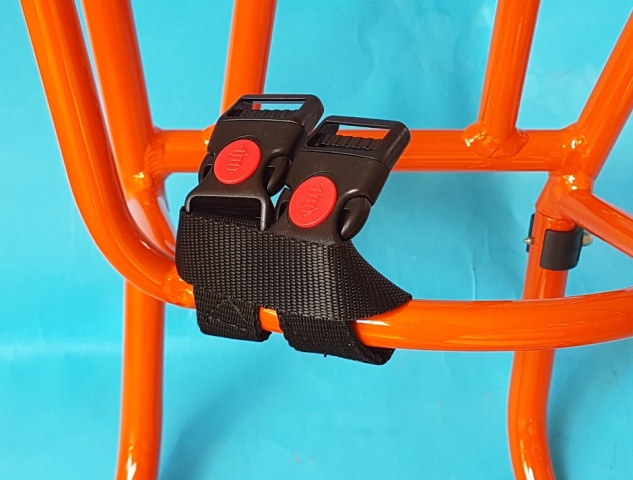

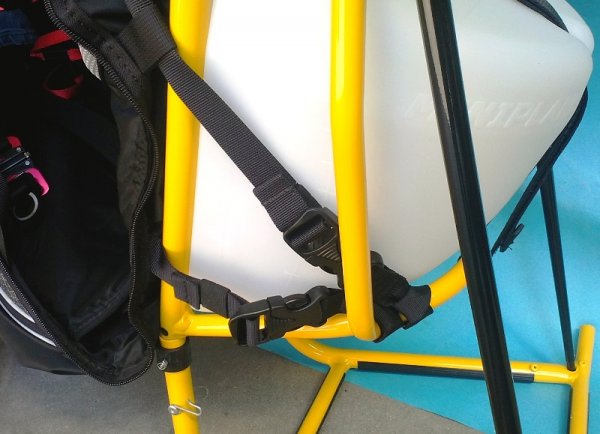

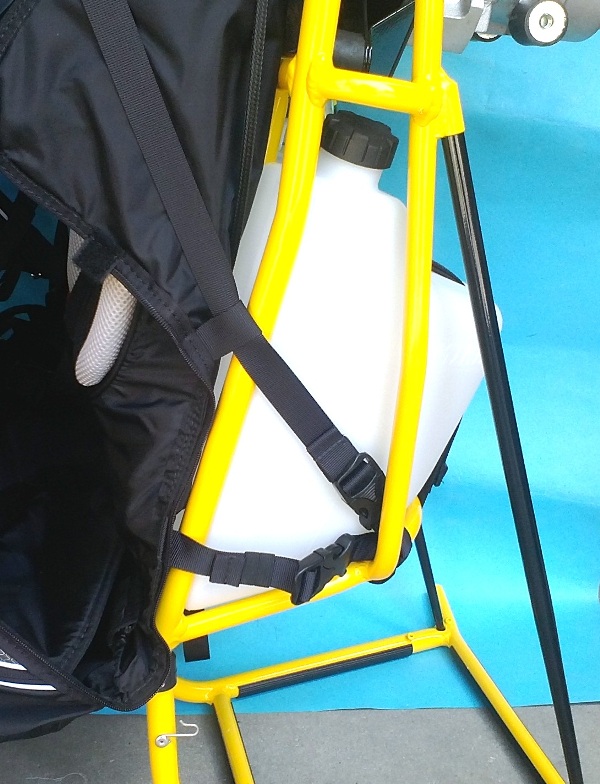

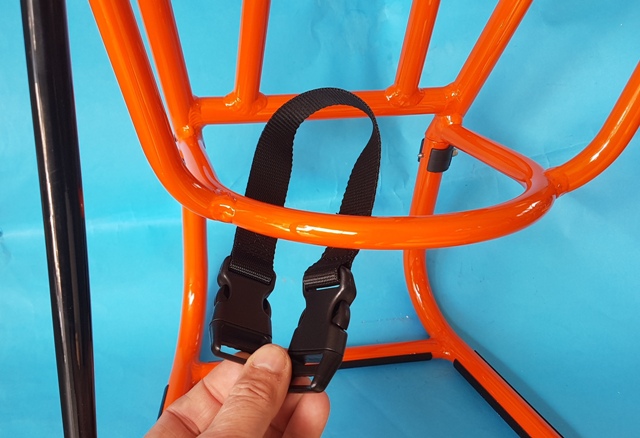

How to fix the straps with the female buckle to the frame - We recommend the assembly as in these first 2 photos, generally this solution is the easiest to adjust.

Please note - The back strap should be adjusted relatively tight with little play. The shoulders should be adjusted as described in the manual.

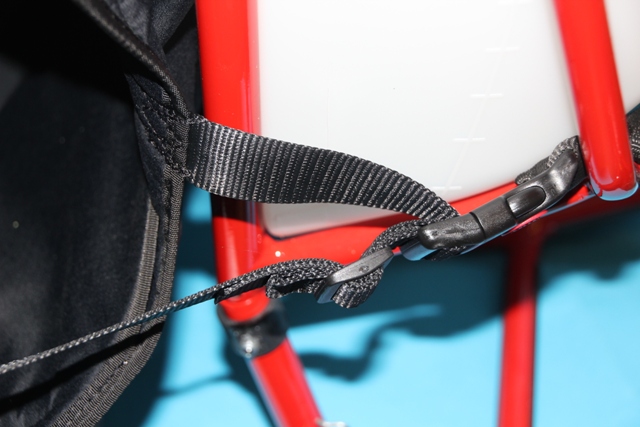

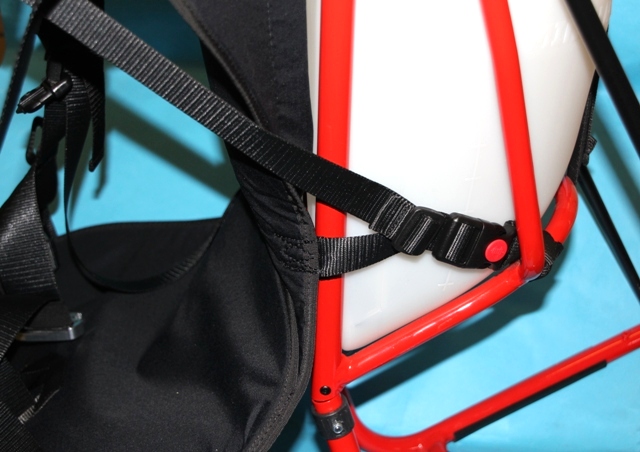

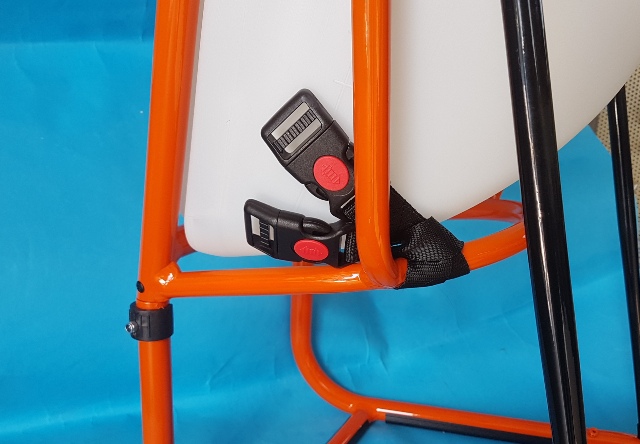

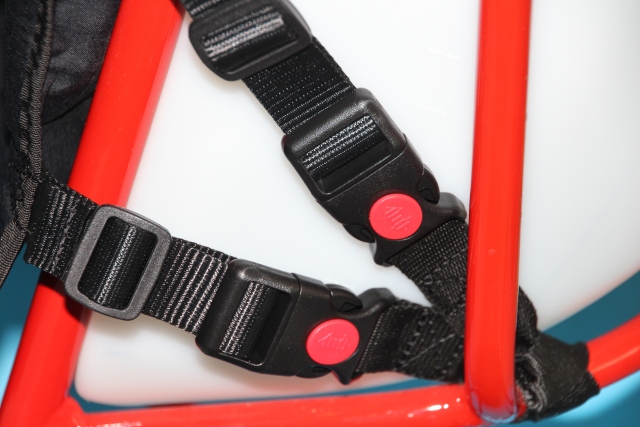

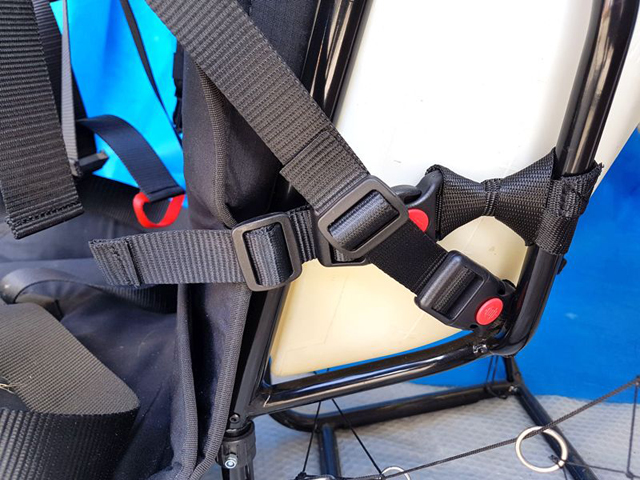

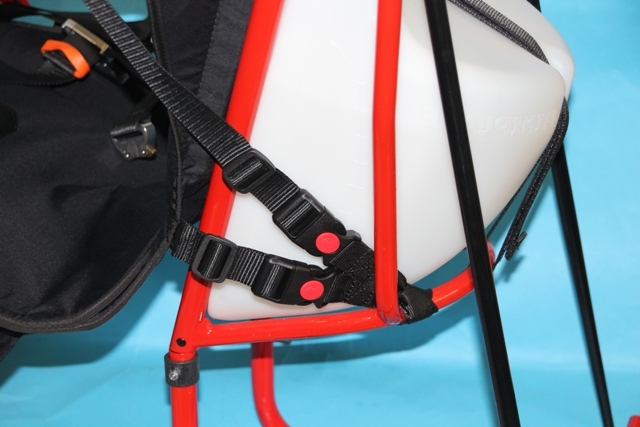

Other solutions like the following examples are also possible.

Please note - The back strap should be adjusted relatively tight with little play. The shoulders should be adjusted as described in the manual.

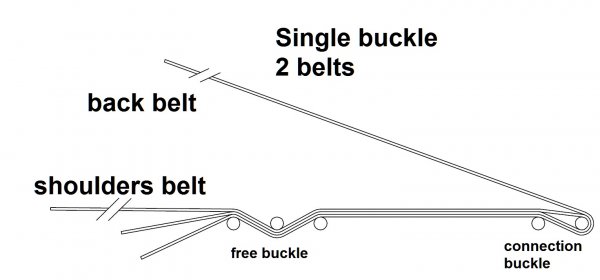

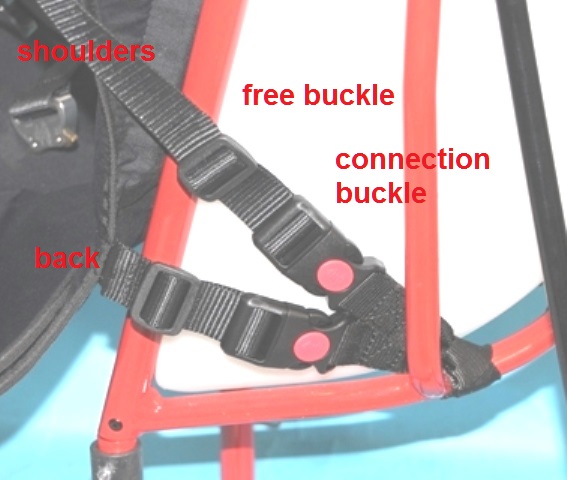

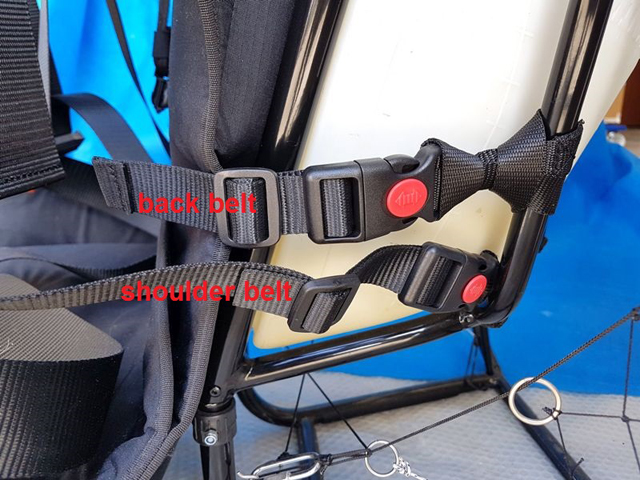

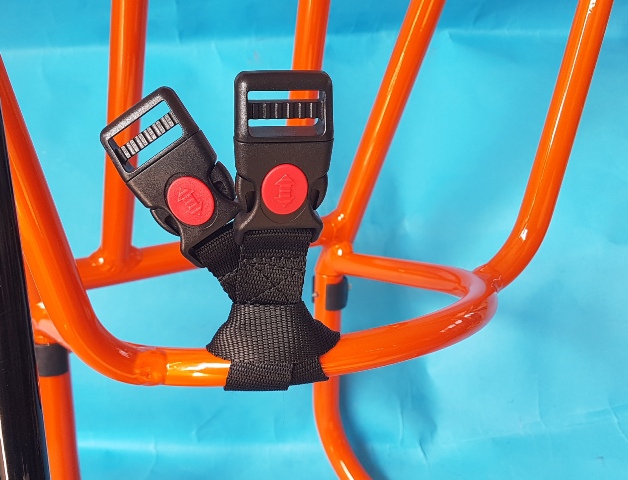

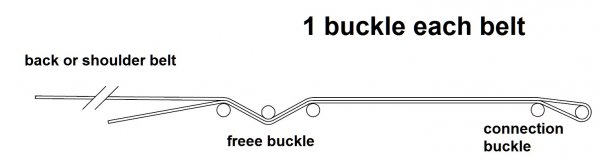

The 2 straps coming from the harness can be fixed to the frame with a single buckle to each side or with one buckle for each belt.

The solution with only one buckle is "cleaner" but more difficult to regulate, if you need frequent adjustments we recommend the solution with separate buckles.

The back belt must be stretched to sufficiency to prevent excessive lateral movement of the harness relative to the frame, but not too much, it must allow the upward rotation of the rear part of the seat when standing up.

The shoulder belt must be adjusted as described in the manual.

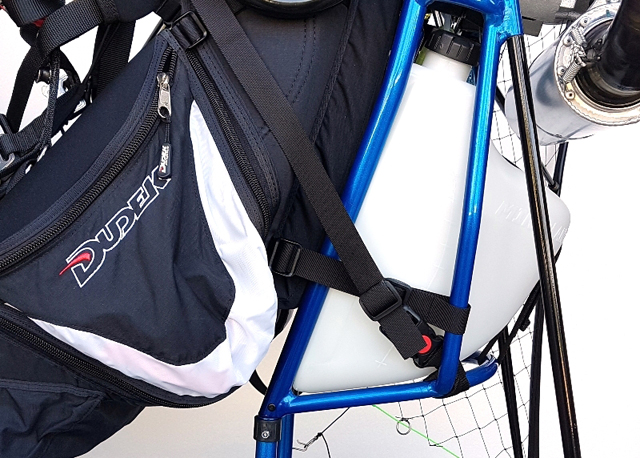

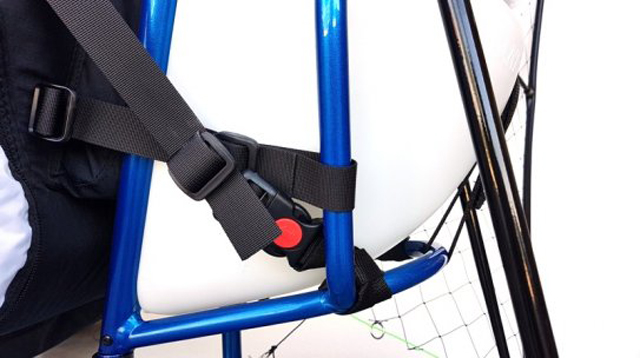

Dudek Harness:
