Side Bar Information for PSF Harnesses





New Frame:

PSF Side Bars 19 TIDM4S

Please note:

This version is NOT USABLE to replace the aluminium Side Bars T1D M4 (M4 frame ) or T1D (classic frame).

Frame Clips
Frame Clips

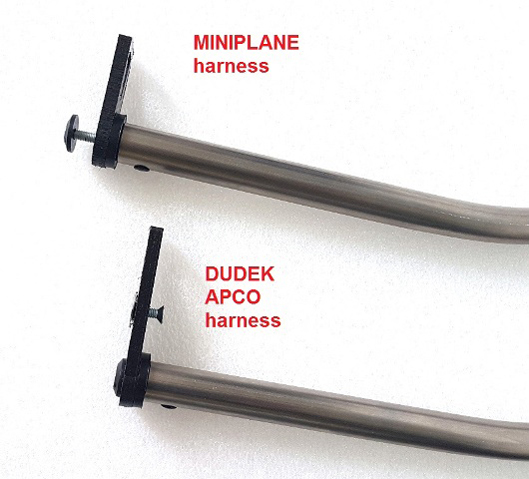

This item includes a couple of side bars (left & right) for PSF M4 frame with plastic fittings for the harness, please select the version you need for Miniplane, Dudek or Apco harnesses. The Side Bars come without holes for the frame clips.

Mounting measurements must be respected when making the holes for the Frame Clips, to obtain the best stability of the machine it is very important to respect the measure as on the diagram at the bottom of this page.

Size M, L or XL depends from the harness size (not from the frame),
Example: on a frame L with M harness, the J bars must have the M size.

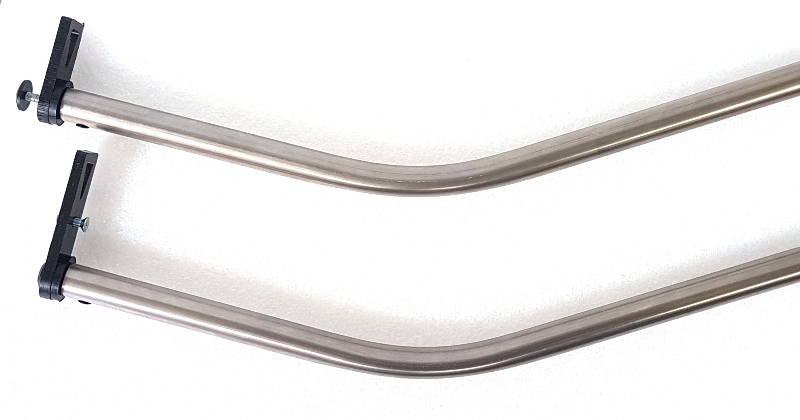

PSF Side Bars 19 TIDM4S:

PSF Side Bars 19

PSF Side Bars 19

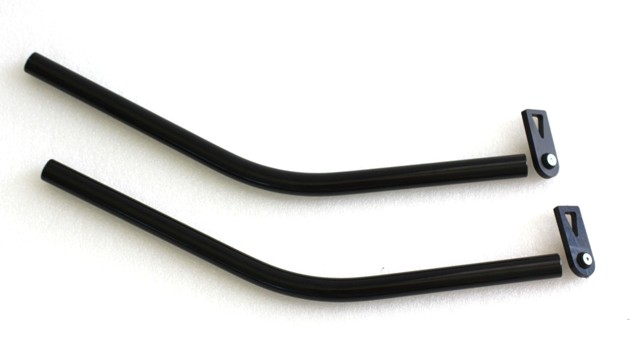

PSF Side Bars 20 TIDM4

Please pay attention:

There are 2 sizes of Side Bars, this one is 20mm aluminum. You must use the correct one, DO NOT enlarge the hole on the frame.

Frame Clips
Frame Clips

This item includes a couple of side bars (left & right) for PSF M4 frame with plastic fittings for the harness. The distance bars come without holes for the frame clips.

Mounting measurements must be respected when making the holes for the Frame Clips, to obtain the best stability of the machine it is very important to respect the measure as on the diagram at the bottom of this page.



PSF Side Bars 20 TIDM4:

PSF Side Bars 20

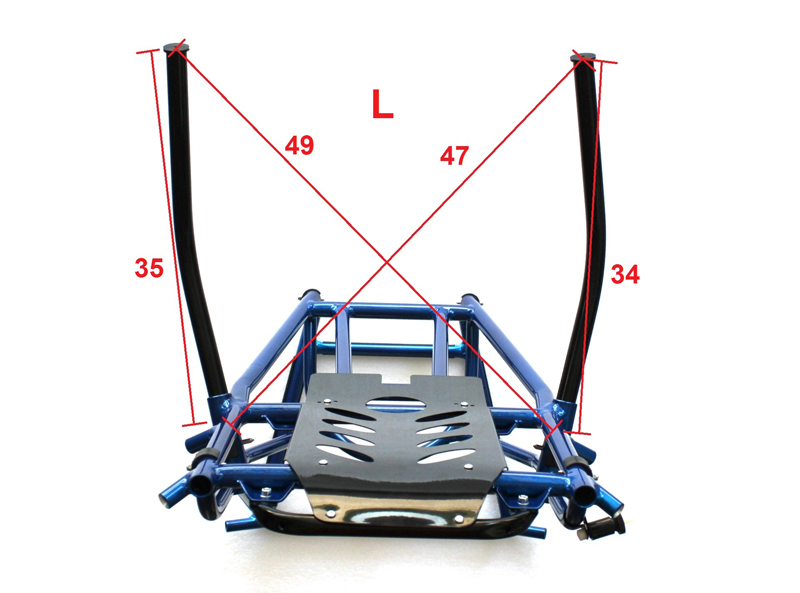

Mounting Measurements for New Frames

Apco Power Pod

Apco Power Pod







Classic Frame:

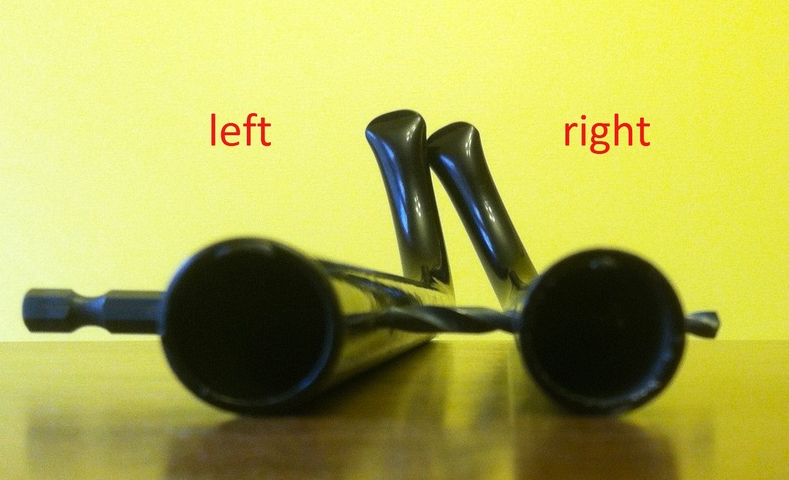

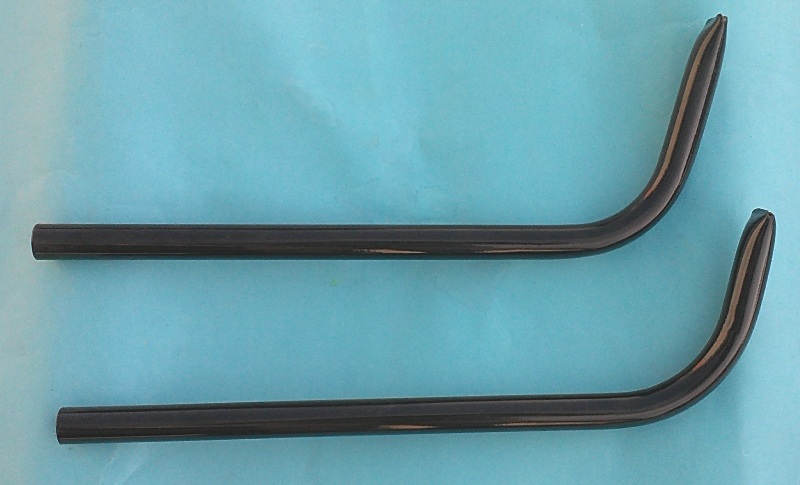

PSF SideBars TID

PSF Sidebars TID



PSF Side Bars

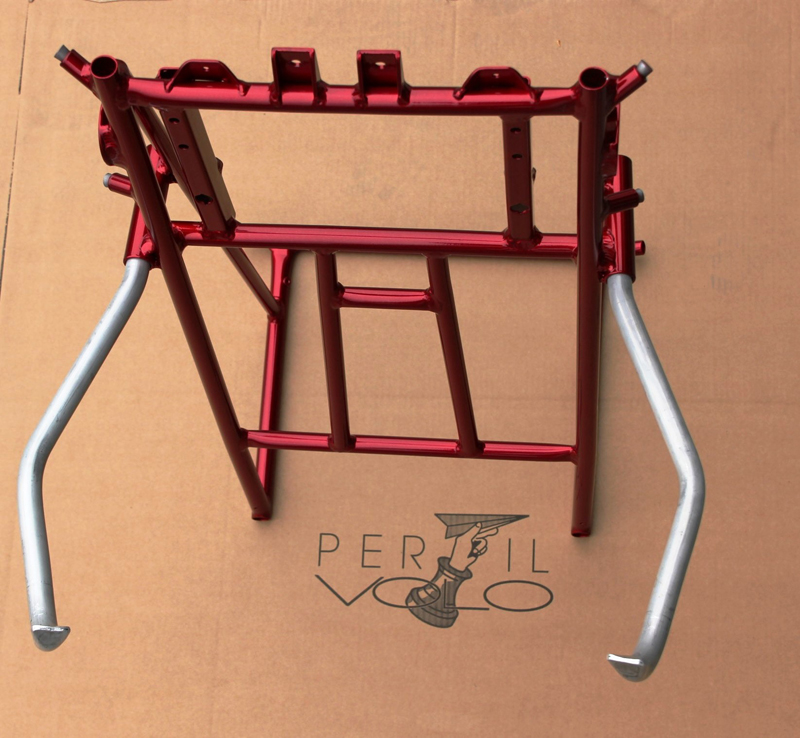

PSF Side Bars XL (curved) TIDC

PSF Side Bars XL

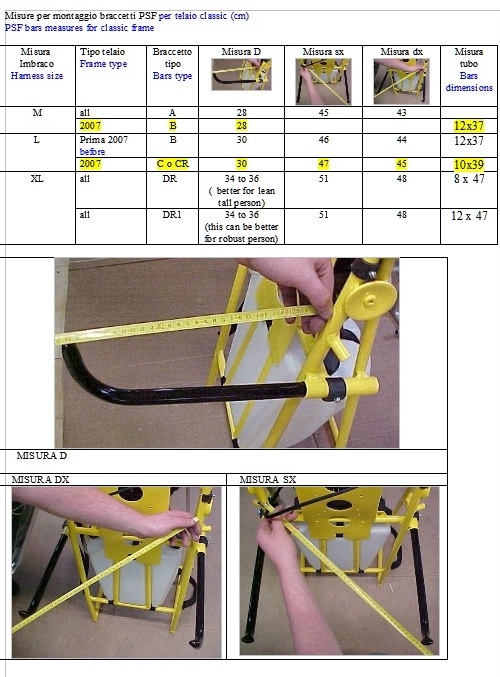

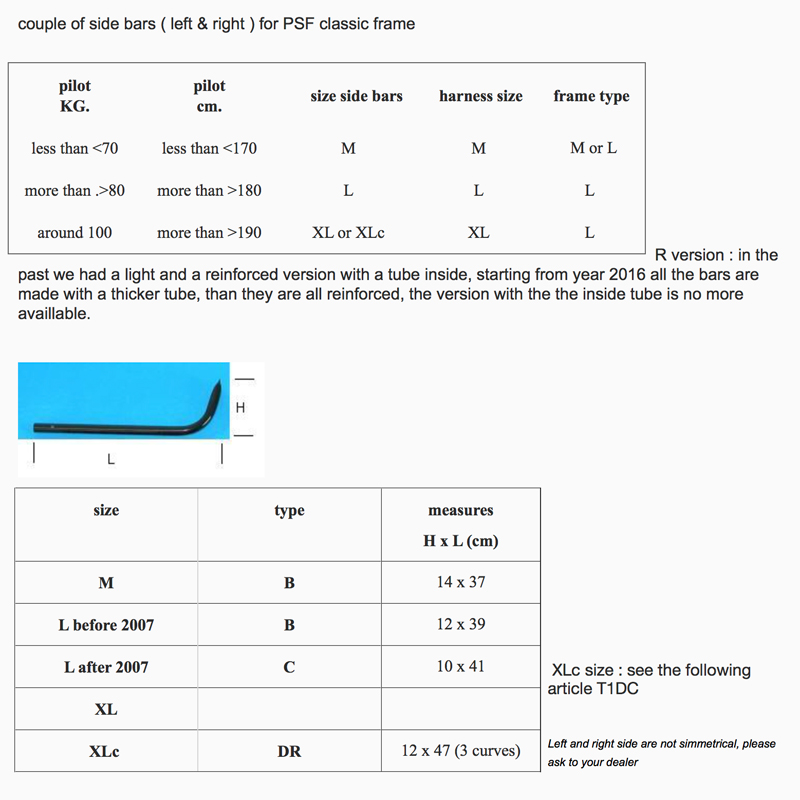

Information and Measurements for Classic Frames
-From the Miniplane website:
