Top 80 Engine: Redrive Parts

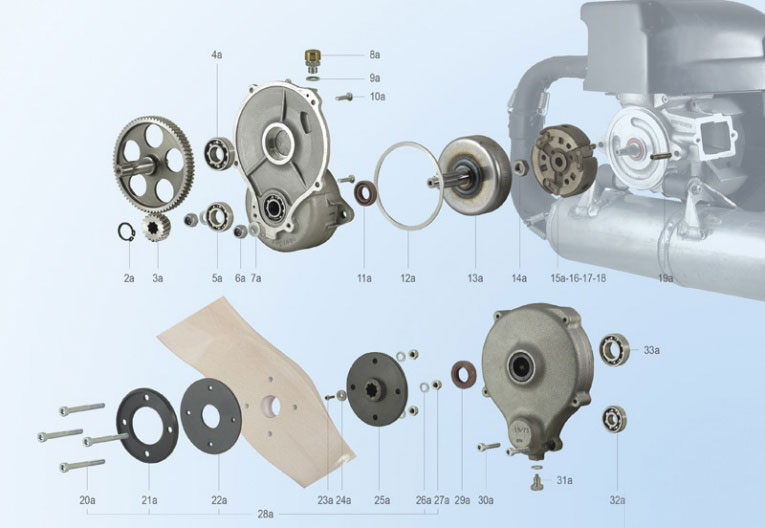

(Expanded Diagram)

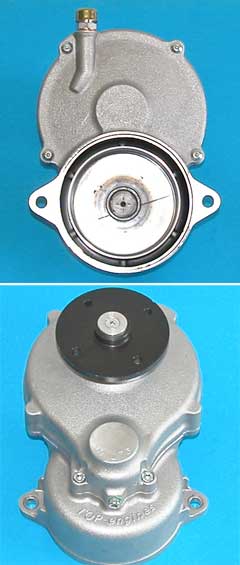

Top 80 Redrive Gearbox M7 |
|
- Complete Redrive (Gearbox Assembly)
- Does not include Oil, Gearbox Vent Cap or Prop Hub Kit
-
There are many Gearbox Ratios:
17:75 - 1/4.411
18:74 - 1/4.111
19:73 - 1/3.842 (default)
20:72 - 1/3.6
21:71 - 1/3.38
22:70 - 1/3.181
Please specify below or default 19:73 will be sent
- Some Ratios are Special Order (3-8 weeks)
- Oil Specs: 30-45 cc's of gearbox oil
- 85w 140 gear oil
- Price: $840.00
|

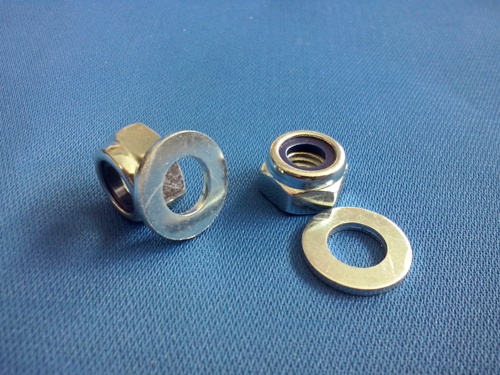

Top 80 Gearbox Nuts & Washers M7D (6a, 7a) |
|
- Nuts & Washers for Redrive
- 2 nuts, 2 washers
- Price: $5.00
|

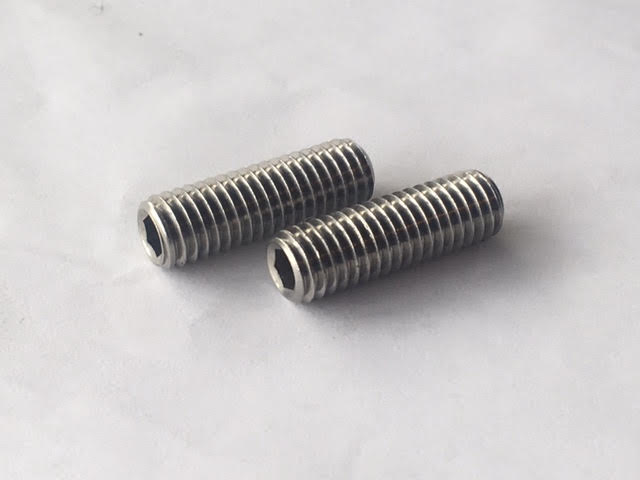

Top 80 Gearbox Studs (19a) |
|
- Gearbox Studs for Redrive
- Stainless Steel
- Set of 2 Studs
- Price: $5.00
|

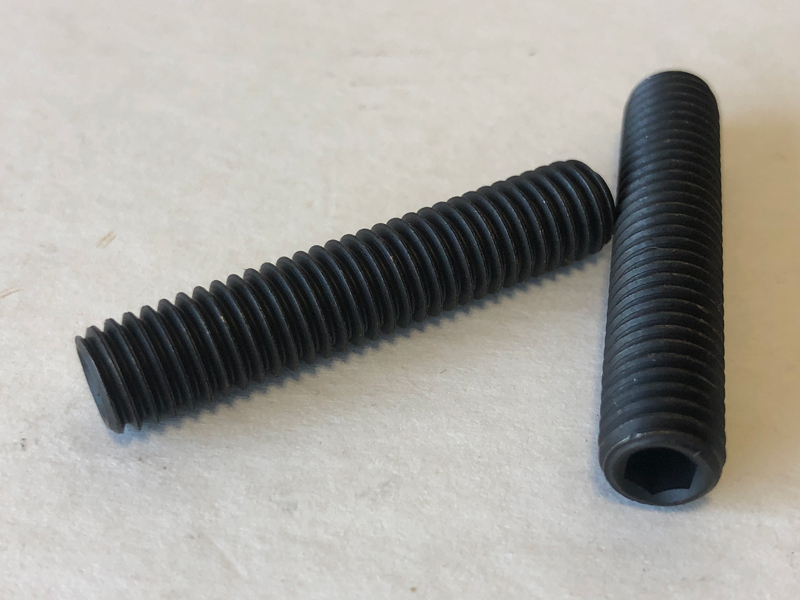

Top 80 Gearbox Studs, Class 45H Black Oxide Steel (19a) |
|
- Gearbox Studs for Redrive
- Class 45H Black Oxide Steel
- Set of 2 Studs
- Price: $5.00
|
Top 80 Gearbox Vent Cap M7TA (8a, 9a) |
|
- Vented Cap for Redrive
- Price: $14.00
|
Top 80 Gearbox Drain Plug M7TB (31a) |
|
- Drain Plug for Redrive
- Price: $11.00
|
Top 80 Reductor Ring M7B (12a) |
|
- Reductor Assembling Ring
- Price: $10.00
|

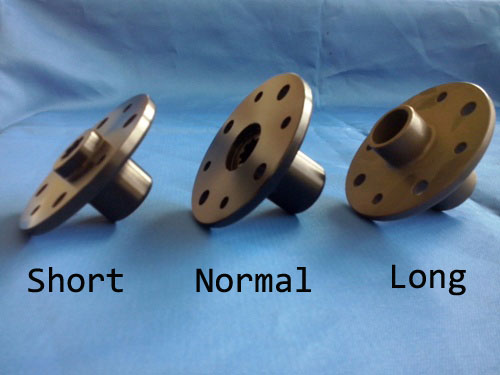

Top 80 Propeller Hub M7A/2 (25a) |
|
- Prop Hub available in 3 sizes:
- Short - closer to Gearbox
- Long - a bit further away
- Normal - furthest away
- New Motors come with Normal
- Price: $60.00
- Short = 2.7cm
- Normal = 4.2 cm
- Long = 3.6cm
- (lengths are from redrive side to prop hub)
- Hub Info
|
Top 80 Propeller Bolts M7A/5 (20a, 29a) |
|
- 4 M6 Bolts & 4 Nuts
- 8.8 Steel
- 45mm for Carbon Propellers
- 60mm for Wooden Propellers
- 75 & 90mm for use with new Spacer Below
- Price: $12.00
|

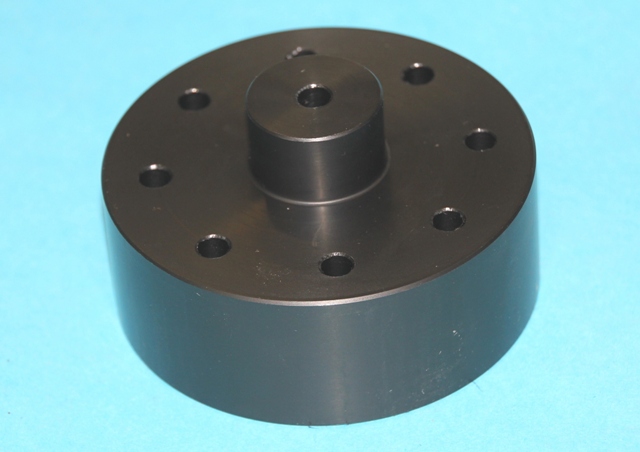

Miniplane Propeller Spacer 30mm M7A/1A |
|
- Plastic Spacer
- M7A/1A
- Puts the Prop further from the cage
- Requires 75mm bolts (not included)
- Price: $54.00
|

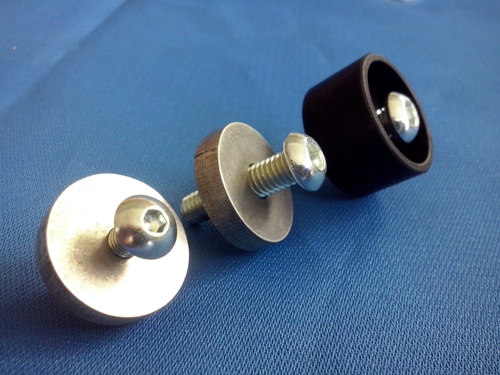

Top 80 Propeller Center Screw & Washer M7A/3 (23a, 24a) |
|
- Propeller Center Screw & Special Center Washer
- Choose size carefully
- Price: $6.00
|

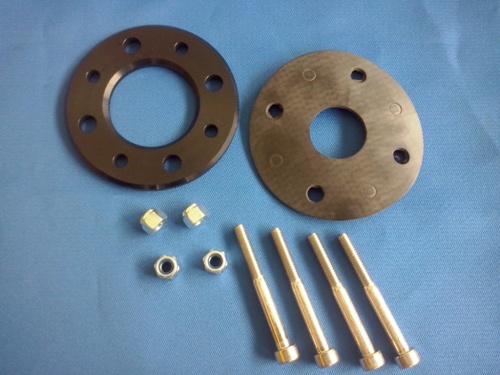

Top 80 Propeller Hub Kit M7A |
|
- 1 Rubber Disk
- 4 M6 Bolts & 4 Nuts
- 1 Propeller Plate
- Includes M6 x 60mm Bolts
- Price: $22.00
|

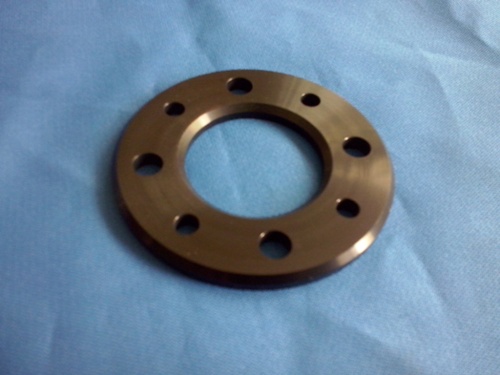

Top 80 Propeller Plate M7A/4 (21a) |
|
- M7A/4 Propeller Plate
- Price: $15.00
|

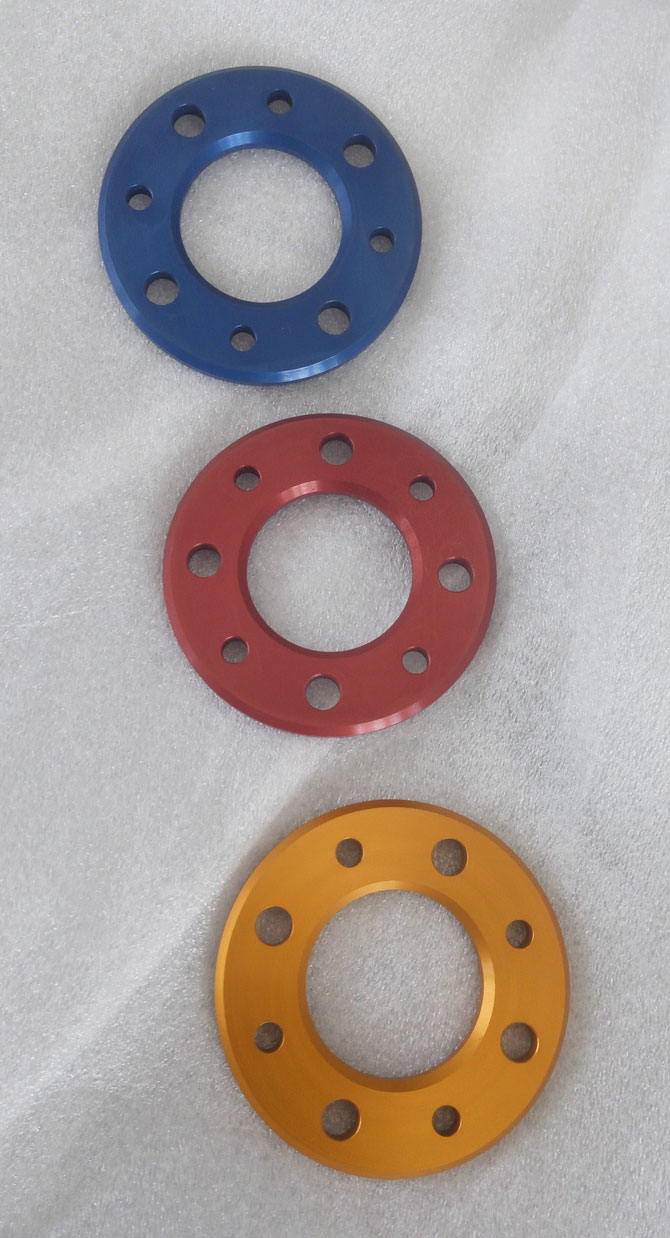

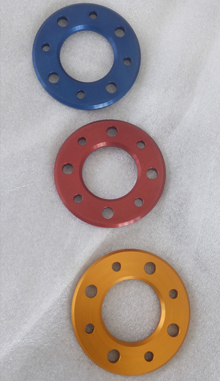

Top 80 Anodized Color Propeller Plate M7A/4c |
|
- Now, you can really add some "Bling" to your Miniplane Paramotor!
- Coordinate your favorite color!
- M7A/4c Propeller Plate
- Price: $20.00
|
Top 80 Propeller Rubber Disc M7A/1 (22a) |
|
- M7A/1 Rubber Propeller Disc
- Price: $7.00
|
Top 80 Clutch Bell M7/4 (13a) |
|
|

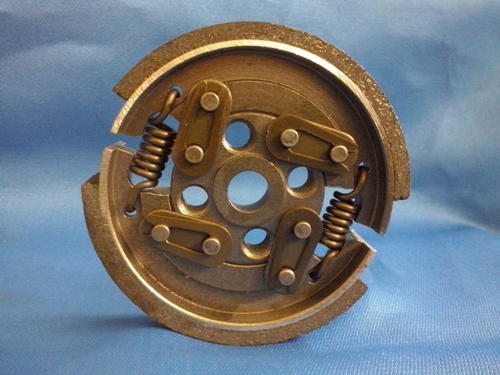

Top 80 Clutch M7/5N (15a) |
|
|
Top 80 Clutch Link (2) M7/8 |
|
|
Top 80 Clutch Springs (2) 454-5 |
|
|
Top 80 Clutch Nut M7/5DN (14a) |
|
- Special Clutch Nut
- Price: $5.00
|
Top 80 Redrive Seals M7/2P (11a & 29a) |
|
|
Top 80 Redrive Seeger Ring Pinion Locker 4571-E14 (2a) |
|
- Seeger Ring Pinion Locker
- Price: $5.00
|
Top 80 Gearbox Gears M7/3 (3a) |
|
- M7/3 - Special Order: 3-8 weeks
- Many ratios available
- Price: $240.00
|
Top 80 Gearbox (Redrive) Bearings Set M7/2 (4a, 5a, 32a, 33a) |
|
- For newer style Oil Redrive
- Set of four - 1 each:
6202
6002
6200
6003
- Price: $46.00
|
T-Nuts for Propeller, set of 4 M7DT |
|
- For Carbon Fiber Propellers
- Set of four
- Price: $14.00
|

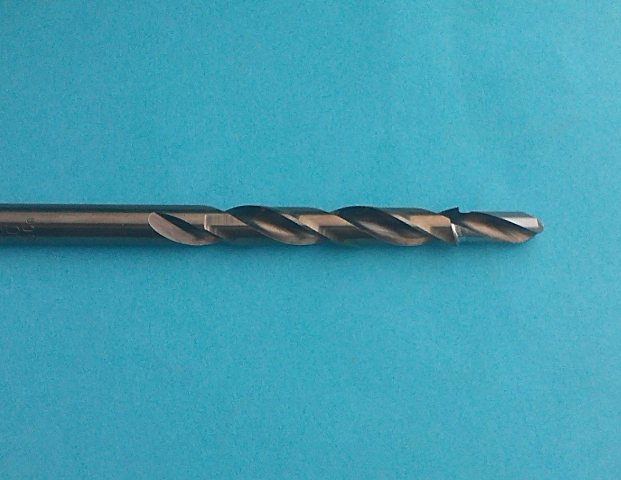

Milling Tool 6/8 MANFE |
|
- Self centering milling chuck to enlarge the hole and take it from 6 to 8 mm.
- Ideal for the changes to the propellers to be able to mount T-Nuts above.
- Made by PER IL VOLO
- Special measures, not normally found on the market
- Price: $65.00
|
Clutch Puller Tool MANEF
|
|
- Made by Per Il Volo
- Special size for Top 80
- Price: $48.00
|
