Top 80 Engine

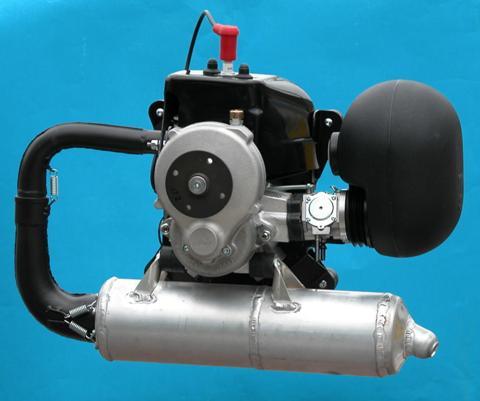

Top 80 Motor

  • The legendary Top 80 Engine is now available as a replacement motor for your Paramotor, WSC Trike or other unique Flying Machine!
  • Complete Motor including Carburetor, Airbox, Gearbox Muffler, Motor Mounts.
  • Propeller & Throttle are not included.
  • Price: $2595.00


Top 80 Engine

The Top 80 is an Italian single cylinder, 2-stroke aircraft engine designed and produced by Per Il Volo for Powered Paragliding. It was the first purpose-designed Paramotor engine!

The Top 80 was developed specifically for the Per Il Volo Miniplane, which was introduced in 1989.

The engine uses fan-cooling and a Walbro WG-8 diaphragm carburetor. Designed for light weight as the overall consideration, the engine weighs 10 kg (22.0 lb), plus the exhaust system weight of 1.5 kg (3.5 lb - NEW Aluminum Style). With the Walbro carburetor the Top 80 produces 11 kW (14.8 hp) at 9500 rpm.

Power is delivered to the two-bladed wooden propeller though a reverse-turning gear box to reduce output net torque felt by the pilot during acceleration and deceleration. The oil filled gearbox can be fitted with 22/70 gears giving a reduction ratio of 3:182, 21/71 gears giving 3.381, 20/72 gears giving 3.60, 19/73 gears giving 3.842 or 18/74 gears with a ratio of 4.111.

The engine also features a centrifugal clutch that allows idling without turning the propeller, a useful feature in its main application on a paramotor, where it improves ground safety.



From FootFlyer.com website:

This tiny, lightweight motor first became popular in Europe, especially with competition pilots. It's light weight and low fuel burn for the power produced made it perfect for competition pilots and everyone else. It can get over 100 lbs of thrust with a 48" prop. Miniplane, the builder, was first to put it on their paramotor frame but soon began selling the engine to others.

Throttle response is quite good on a properly running motor. I've heard pilots complain about this and indeed I've flown those with a slow response but that's because there's a problem. A normally running Top 80 is quite nimble.

This is probably the most impressive motor for the amount of power delivered per pound of weight. It enjoys US support (link above) and a loyal following.




cm3

80    monocylinder

Version standard Economy
alesaggio mm

47,7

corsa mm 44

empty weight

Kg

10 + exaust (1.5)

carburetor

mm

Walbro 24 diaphragm

Dell'Orto 17,5  basin

starter

manual

cooler

air fan

exhaust

resonance with  integrated silencer

power KW 11 10
revolution n/m 9500 9300

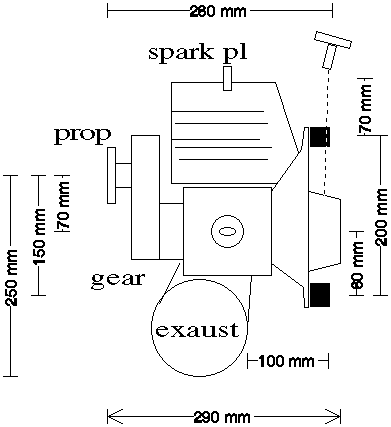

dimensions

cm

h 29 x l 28 x L 24 Without exaust
Dimensions

transmission

centrifugal friction

reduction gear box in oil bath
