Propellers




Miniplane Paramotors




Products







Miniplane Paramotor Propellers

Miniplane

Look here: Top 80 Propeller comparison

NOTICE:

Please choose carefully. Due to the delicate nature of propellers, returns are limited. We cannot accept returns on propellers once they have been bolted to the engine. We will not accept returns on propellers that have been wound up or flown even once.

Propellers must be packed very carefully as they are easy to damage in shipping. We suggest a good deal of extra padding and cardboard to protect the ends. If the propeller is damaged during return shipping we will not be able to issue you a refund, so consider insuring it with the shipper so you have financial remedy if it is damaged.

On the Miniplane NEW 2016 Frame, it is recommended to use the 30mm Spacer with all propellers on the Top 80 engine. On the Classic frame, you do not need the spacer as the clearance is larger. Top 80 has 4 bolts, M6x60mm bolt pattern. Propeller bolt torque values can be found HERE.



Miniplane Prop Bolts: M6, Hex Head
Prop Plate 5mm
30mm Spacer 30mm
60mm Spacer 60mm
Propeller, Hub Bolt: W/30mm Spacer: W/60mm Spacer:
Wooden, 26mm 45mm 75mm 110mm
Yueny, 25mm 45mm 75mm 110mm
Helix, 20mm 45mm 75mm 110mm
E-Prop, 40mm 60mm 90mm 120mm

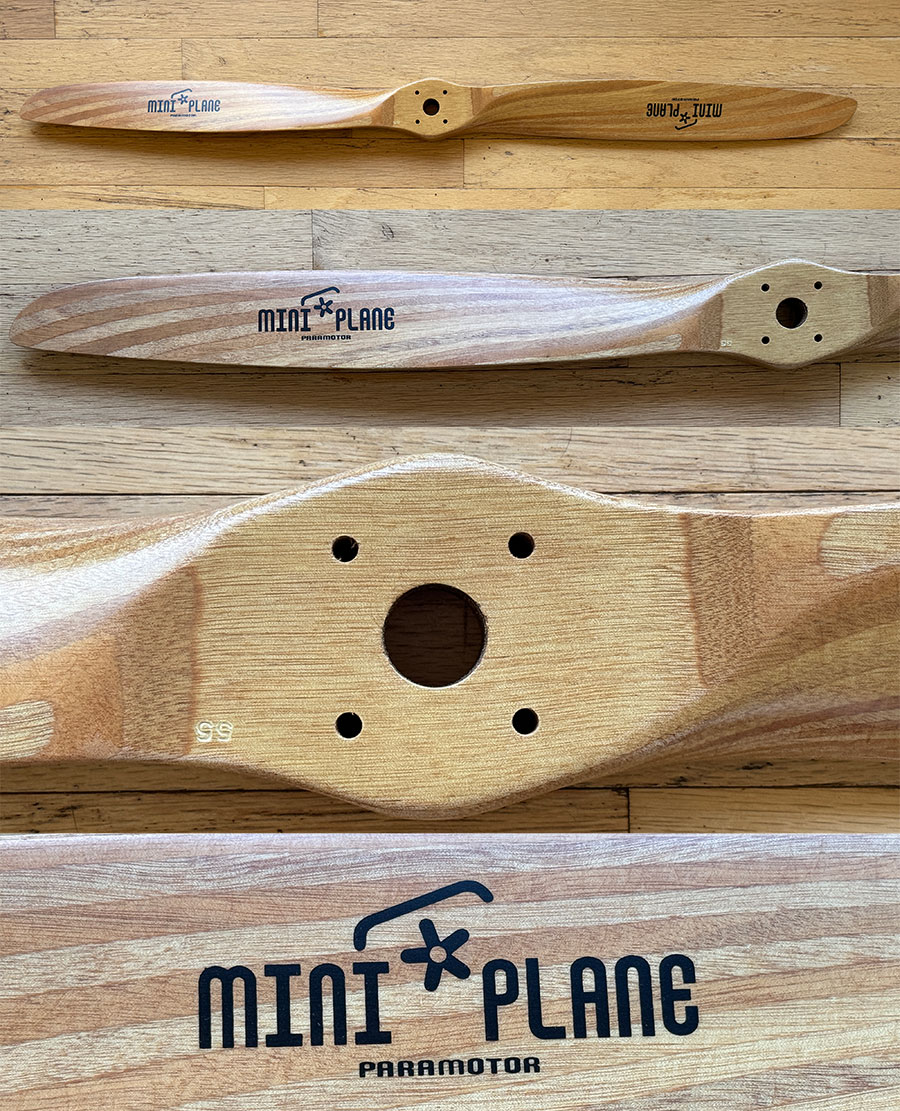

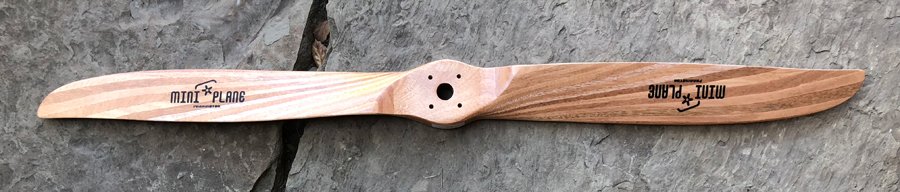

Top 80 Wooden Propeller - 125cm (MP)

  • Multi-layered Wooden
  • Diameter: 125cm
  • Available for 19:73 reduction
  • Weight: 700 gr
  • Price: $250.00

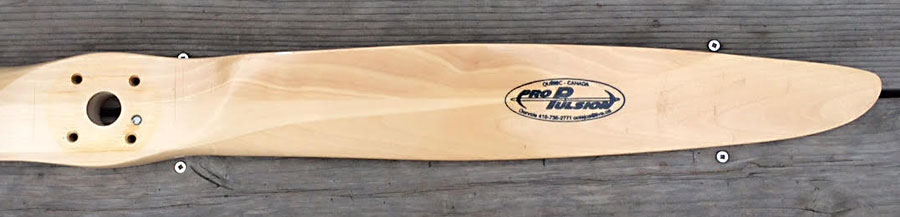

Top 80 Wooden Propeller - 115cm

  • Multi-layered Wooden
  • Diameter: 115cm
  • Available for reduction 21:71
  • Weight: 1010 gr
  • Price: $250.00


Yueny Top 80 Carbon Fiber Propeller - 2 piece 125cm

  • Carbon Fiber
  • 2 piece design for easy transport
  • Best used with 19:73 gearbox
  • Weight: 985 gr
  • Price: $285

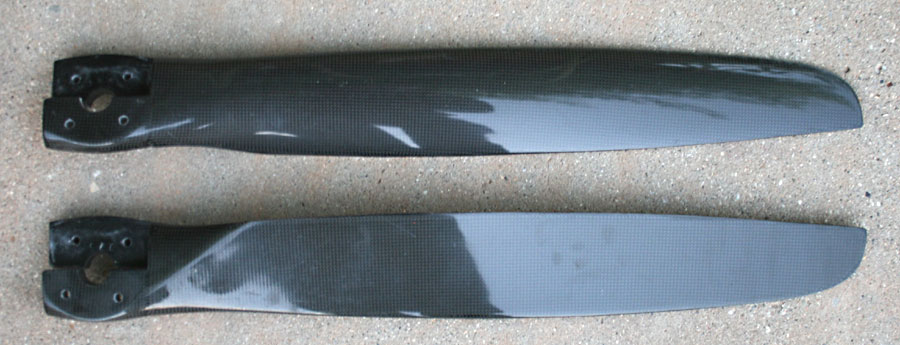

MAH Blades Top 80 Carbon Fiber Propeller - 2 piece 125cm

  • Carbon Fiber
  • 2 piece design for easy transport
  • Best used with 19:73 gearbox
  • Weight: 898 gr
  • Price: $395

Helix Top 80 Carbon Fiber Propeller 125cm - 2 piece T2HPV

  • Carbon Fiber
  • 2 piece design for easy transport
  • Unique Scimitar shape at the tips
  • Available for 19:73 or 20:72
  • Helix H30F 1,25m R-M-06-2
  • Weight: 872 gr
  • Price: $395


Helix Top 80 Carbon Fiber Propeller 130cm - 2 piece T2HA for 19:73

  • Carbon Fiber
  • 2 piece design for easy transport
  • Best used with 19:73 gearbox
  • Helix H30F 1,30m R-M-05-2
  • New light design!
  • Weight: 720 gr
  • Price: $395

Helix Top 80 Carbon Fiber Propeller 140cm - 2 piece  for 17:75

  • Carbon Fiber
  • 2 piece design for easy transport
  • Best used with 17:75 gearbox
  • Helix Top 80 140 17/75
  • Weight: 880 gr
  • Price: $425

E-Props Plug-N-Fly Top 80 Carbon Fiber Propeller - 2 piece

  • Carbon Fiber Propeller
  • 2 piece design for easy transport
  • For 19:73 Reduction Gearbox
  • 125cm or 130cm lengths
  • Weight: 640 gr
  • Price: $395


E-Props NG-D Top 80 Carbon Fiber Propeller - 2 piece

  • Carbon Fiber Propeller
  • Ground Adjustable Propeller
  • For 19:73 Reduction Gearbox
  • Weight: 930 gr
  • Price: $369


E-Props New Scimitar Plug-N-Fly Top 80 Propeller - 2 piece

  • Newest Scimitar design from E-Props!
  • Carbon Fiber - very light!
  • 2 piece design for easy transport
  • For 19:73 Reduction Gearbox
  • 125 & 130cm length
  • Weight: only 495 grams!
  • Price: $395

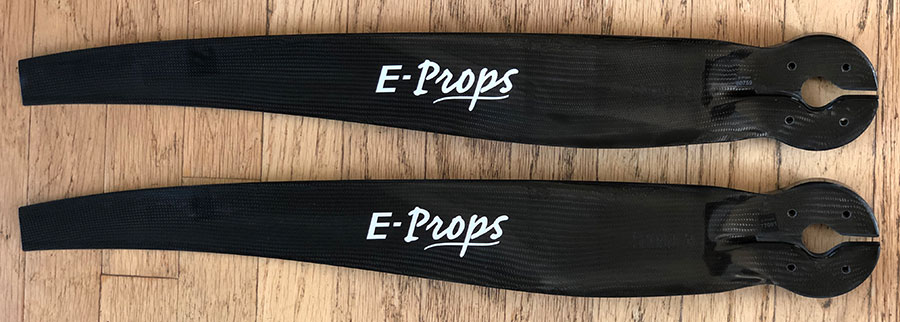

E-Props Scimitar Rigid Cage Top 80 135cm Propeller

  • Newest Scimitar design from E-Props for Rigid 150!
  • Carbon Fiber - very light!
  • 2 piece design for easy transport
  • For 17:75 Reduction Gearbox ONLY!
  • 135cm length
  • Weight: only 660 grams
  • Price: $425


Top 80 Propeller Rubber Disc M7A/1 (22a)



  • M7A/1 Rubber Propeller Disc
  • Price: $7.00




Miniplane Propeller Spacer 30mm M7A/1A


Bolt Pattern:

4 bolts, M6x60mm

  • Plastic Spacer
  • M7A/1A
  • Puts the Prop further from the cage
  • Requires 6mm x 75mm bolts (not included)
  • Price: $54.00

Miniplane Propeller Spacer 60mm M7A/2A


Bolt Pattern:

4 bolts, M6x60mm

  • Plastic Spacer
  • M7A/2A
  • Puts the Prop further from the cage
  • Requires 6mm x 110/120mm bolts (not included)
  • See Chart above for Information
  • Price: $60.00

Top 80 Propeller Bolts M7A/5



  • 4 M6 Bolts & 4 Nuts
  • 8.8 Steel
  • 45, 60, 75, 90mm sizes
  • Price: $12.00


Top 80 Propeller Bolts, Long M7A/5



  • 4 M6 Bolts & 4 Nuts
  • 8.8 Steel
  • For use with the 60mm Spacers
  • 110, 120mm sizes
  • Price: $20.00

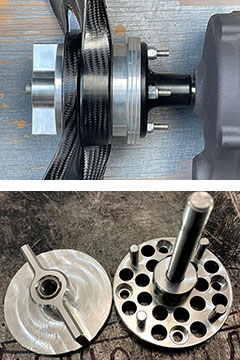

Easy-Off Propeller Hub Kit for Quick Changes!

  • Complete Kit for quick propeller changes! This Easy-Off Hub Kit is the answer to those who wish to use different props with different unit or match a different unit with propeller.
  • This Easy-Off Simple Version is made for the Top 80 or any 80cc engine with the 4-hole pattern (M6x60mm with 25mm center hole).
  • Simply put this Easy-Off onto your Propeller Hub and now you can change props is a jiffy!
  • Includes a spacer in case your Prop Hub has a longer center boss. Weight 11 oz (308 gr).
  • Price: $147.00

EASY-OFF Propeller Hub Kit



Miniplane Propeller Spinner, Small


  • Small Propeller Spinner
  • Metal Reinforced
  • 87 grams
  • Price: $115.00
  • Sorry, very limited supply...


Miniplane Propeller T-Nuts, set of 4 M7DT



  • For Carbon Fiber Propellers
  • Set of four
  • Price: $14.00

Milling Tool 6/8 MANFE



  • Self centering milling chuck to enlarge the hole and take it from 6 to 8 mm.
  • Ideal for the changes to the propellers to be able to mount T-Nuts above.
  • Made by PER IL VOLO
  • Special measures, not normally found on the market
  • Price: $65.00

Miniplane Propeller Cover

  • See more details HERE
  • Price: $60.00
