New 115cm ABM Miniplane!

Finally a compact ABM Miniplane frame for light pilots!

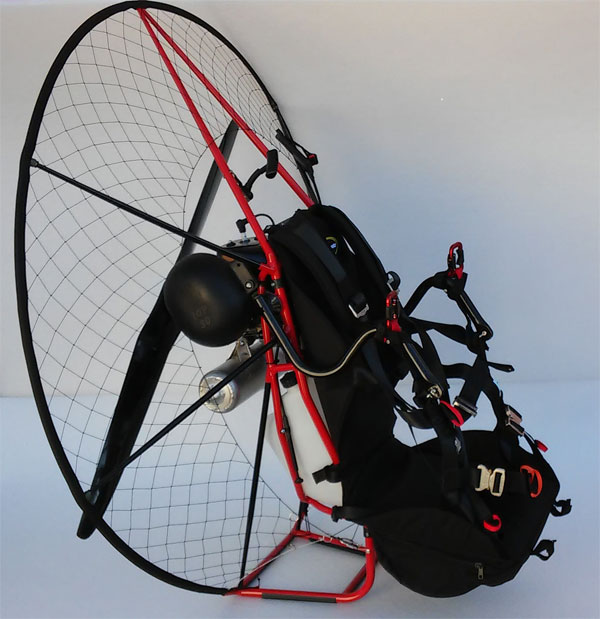

Miniplane 115cm ABM Paramotor

What's new for the Miniplane ABM 115cm Paramotor:

A resized geometry make the machine more aerodynamic and (is it possible?) better balance on the ground and in flight.
The main body of the frame is designed as a closed box, very strong and rigid.
The low part of the frame is separate - in case of a crash the lower section part works as a fusible (crumple zone?). It is much easier and cheaper than the entire frame to change if necessary.
The back side of the low part is simply made with 2 sticks, the same as the side sticks, (so there are 6 total in each frame). This solution gives good stability and it is very easy to dismount for transport. In case you need it, it is possible to remove 1 and use as spare side stick.
The width is 4 cm less than old frame, and the ABM arms are also 4 cm closer, so the seating is more confortable for small pilots; bigger pilots can also enjoy the benefits of handling, or they can use a spacer in case they need a wider size.

Standard Features:

The M size was designed for 115 cm propellers. It is possible to use also a 120 cm prop only when using the spacer M7A/1A.
